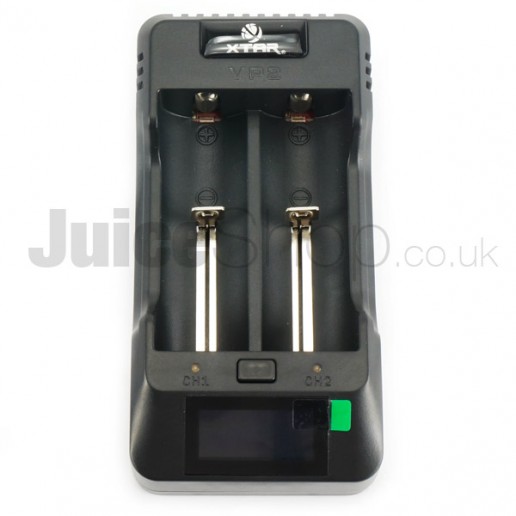

XTAR VP2 CHARGER

The XTAR VP2 charger is our latest professional lithium-ion charger, great for a wide variety of battery sizes and capacities. It features precise voltage and battery level display and a brand new added USB powerbank feature. 5V 1A out for charging your other mobile devices.

Features:

1. Two independent charging channels for 10440/16340/14500/14650/17500/17670/18350/18500/18650/18700 Li-ion battery

2. Algorithm(CC.CV)charging system

3. Optional and adjustable charge current:250mA,500mA,1A

4. VP2 with switchable LCD indicator to display the real-time charging voltage and battery status

5. Activation function for over discharging battery.VP1 can recover the overly dicharging protected batteries

6. Soft start function avoids damage from a large current surge

7. Automatically restart charging when batteries voltage(full charged batteries not taken out from the charger channel)is below 3.9V(batteries may self discharge)

8. Reverse-polarity protection circuit board

9. USB

Notice: The above-mentioned parameters tested in Lab are approximate and may vary between flashlight/charger, batteries and environments.

What are the main differnces between the VP1 and this new VP2? 1.

1. VP2 can charge 26650 batteries.

2. VP2 has 3.2V/3.6V/3.8V optional charging voltage. 3.2V is for Li-FePO4 batteries and 3.6V & 3.7V is for Li-ion batteries.

3. VP2 has indicator lights which can indicate the charging situation.

4. VP2 has a 1A USB output function so that users can use the charger as a USB battery backup (use it to charge mobile phones and other mobile USB devices)

Specification:

• 2 Channels 10440/16340/14500/14650/17500/17670/18350/18500/18650/18700/22650/25500/26650 and Rechargeable RCR123A batteries (DOES NOT CHARGE NON-RECHARGEABLE CR123 BATTERIES!)
• Operation Temperature: Room temperature 0~40℃
• Input AC: 12V DC 1000mA
• 0.25A CC :250mAh±30mAh
• 0.5A CC :500mAh±50mAh
• 1.0A CC :1000mAh±80mAh
• Cut-off Voltage: 4.2V±0.05V
• Detection precision:±0.03V
• Weight: 95g
• Size(mm): 118.0 length x 62.0 width x 34.0 height

Output:

• DC 3.0/4.35v 3.0v/3.2v LiFePO4 Battery Charger (Charges to 3.2v)
• 3.6v/3.7v Li-ion Battery Charger (Charges to 4.2v)
• 3.8v Li-ion Battery Charger (Charges to 4.35v)

This set includes:

• VP2 Charger
• UK 3 pin power cable
• Car Adaptor
• Package
